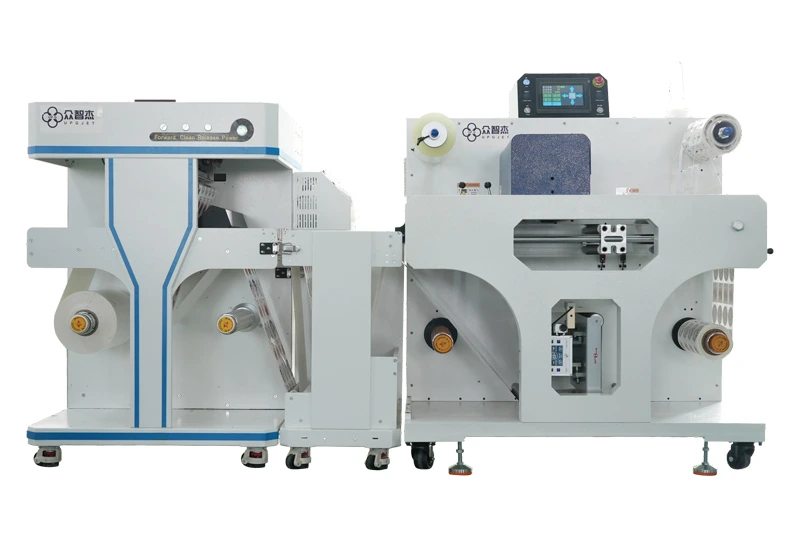

330M+330B
Digital Label Printing and Cutting Machine
330M+330B
Digital Label Printing and Cutting Machine
This compact two-in-one solution combines digital printing and automatic die-cutting, offering a complete process for producing finished labels. Designed for small-batch self-adhesive label production, it prints directly onto the substrate and performs precise, fully automatic cutting in a single workflow. With high cutting accuracy and simplified operation, it’s suitable for custom short-run jobs, helping reduce waste and increase efficiency in label finishing.
Applications
Specifications
| Model | LQ-MD 330M |
| Ink Type | Water-based dye/pigment inks |
| Cartridge Capacity | 1000ml×4 colors |
| Printhead Model | 297 |
| Number of Printheads | 1 |
| Resolution | 1200×600/1200×1200DPI |
| Print Speed | 18m/min,9m/min |
| Model | LQ-MD 330B |
| Media width | 350 mm |
| Cutting Length Range | 10-300 mm |
| Cutting Speed | 15m/min |
| Number of Cutting Heads | 4 |
| Number of Slitting Knives | standard 5 |
| Repeat Die-Cutting Accuracy | 0.05 mm |
Features
- Equipped with a self-developed ink delivery system and water-based eco-friendly ink to ensure stable ink flow during mass production.
- Maximum print speed of 18 m/min and resolution up to 1200 × 1200 dpi, suitable for high-quality label printing.
- Three-axis servo-driven constant tension paper feeding system adapts to different paper types and tension requirements, ensuring smooth and accurate feeding.
- Integrated with a standard RIP system and proprietary operating software to optimize most image files and support fast printing.
Details

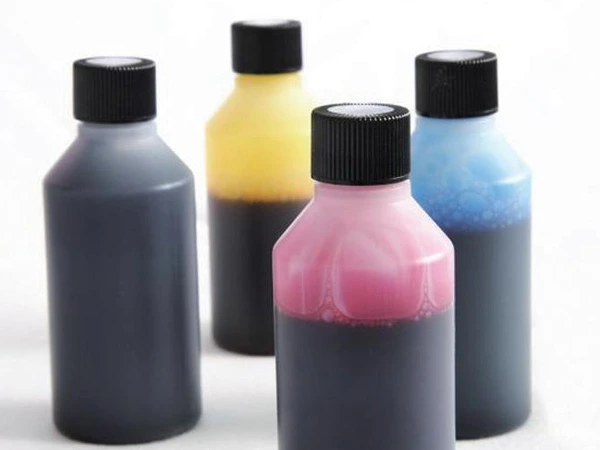

Water-based eco-friendly CMYK inks

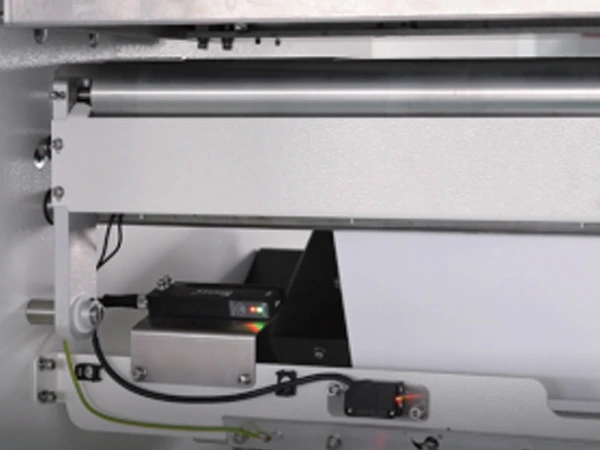

Intelligent registration & detection system

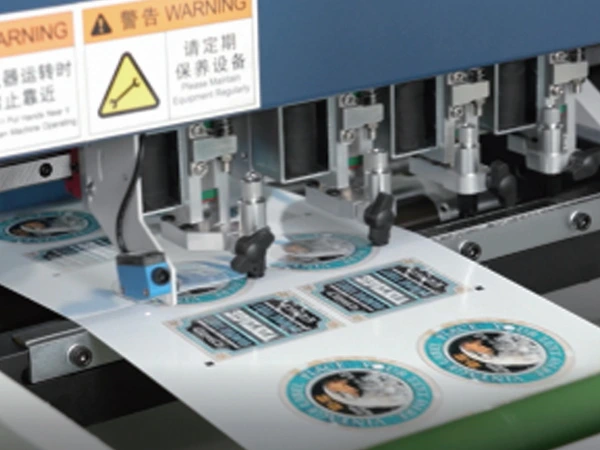

Four cutting heads
