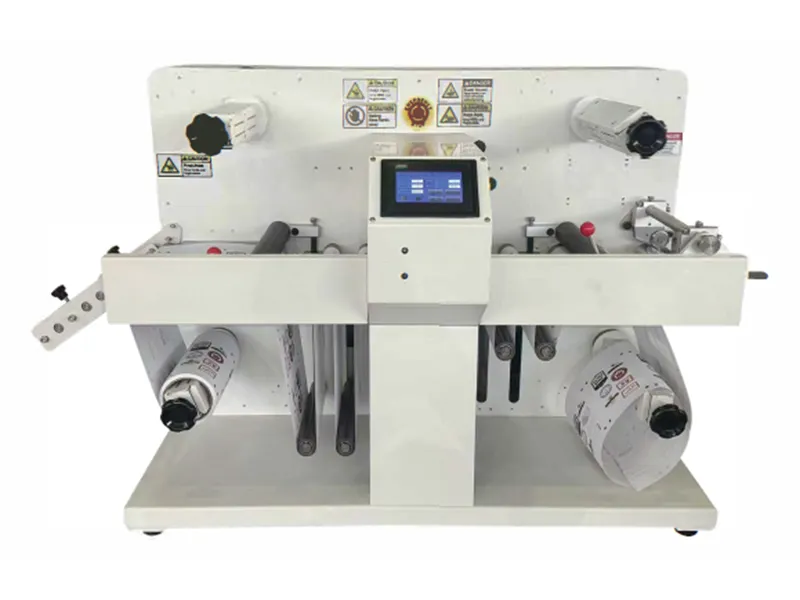

LQ-MD 240
Roll-to-Roll / Roll-to-Sheet Label Cutter
Digital cutting machine for labels
LQ-MD 240
Roll-to-Roll / Roll-to-Sheet Label Cutter
Digital cutting machine for labels
This product has been discontinued and removed from our shelves.
This roll-to-roll and roll-to-sheet label cutter are developed to make label cutting processes easy, offering flexibility and precision in every cut. Designed to work seamlessly with a variety of label types, this cutter combines advanced technology with user-friendly features to enhance your operational efficiency.
Equipped with tungsten steel rotary blades, this label cutting machines features durability and precision, ensuring clean and accurate cuts every time. The high cutting precision is further supported by X and Y servo motors, which guarantee precise movement and placement, enhancing the cutter's ability to handle detailed work with ease.
Specifications
| Cutting Blade | Tungsten steel rotary blade |
| Cutting Speed | 8m per minute (7×15cm) |
| Media Width | 80-240mm |
| Cutting Precision | 0.1mm (duplicate) |
| Media Thickness | 60-400um |
| Max. Roll Diameter | 290mm |
| Machine Dimensions | 910×630×740mm |
| Machine Weight | Approx. 120kg |
| Power Supply | 220-240V 1000W |
| Machine Features | |
| 2 Cutting Head | Standard |
| 4 Slitter Unit | Standard (Max. 8 slitter) |
| Lamination | Standard |
| Waste Removal | Standard |
| Sheet Cutter | Optional |
Features
- The use of tungsten steel rotary blades ensures long-lasting durability and consistently clean, precise cuts. This material choice provides superior cutting performance that can handle a variety of materials without compromise
- Equipped with servo motors for both X and Y axes, the cutter offers exceptional precision in every cut. This precise control is essential for maintaining quality in complex patterns and intricate designs, ensuring every label is cut to exact specifications
- The fully automatic tension control, managed by a dedicated sensor, maintains consistent tension throughout the cutting process. This feature prevents material stretching or misalignment, leading to higher quality finishes and reduced waste
- Whether users need roll-to-roll or roll-to-sheet operations, this cutter is designed to accommodate both. This versatility makes it an excellent choice for businesses that require flexibility in their production line to handle different types of label cutting jobs efficiently
- Designed to connect easily with the VP700 inkjet printer inline, this cutter enables a streamlined workflow that can go from printing to cutting without manual intervention. This integration is perfect for enhancing productivity and reducing the turnaround time for each batch of labels
- A safety guard for the slitter ensures that the operation is safe for all users. This protective feature helps to prevent accidents and maintain a safe working environment, especially during high-speed operations
- With a cutting speed of up to 8 meters per minute, this label cutter is designed for efficiency. This speed allows you to meet tight deadlines and handle high-volume jobs with ease, ensuring that your production line keeps moving smoothly.
