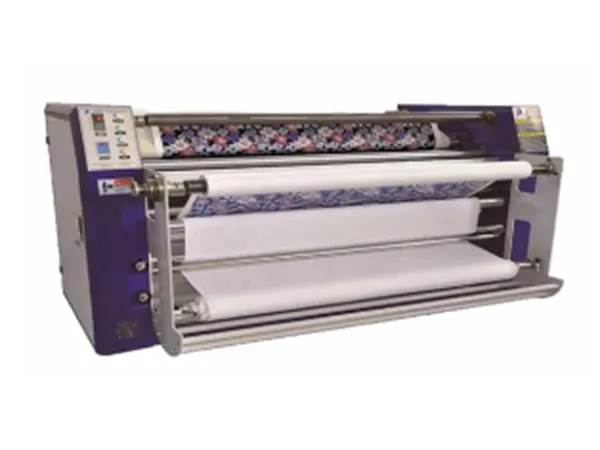

Rotary Heat Transfer Press
Roll-to-roll heat transfer machine
Rotary Heat Transfer Press
Roll-to-roll heat transfer machine
This product has been discontinued and removed from our shelves.
Developed for continuous roll-to-roll heat transfer, the rotary heat transfer press is ideal for the advertising and textile industries, where high demand for quality and efficiency is important. This printing press combines adjustable belt tension with an electrical, thermo-oil heated system to ensure uniform and precise temperature control across the entire material surface. This precise temperature management is important for achieving the highest quality transfers without any variation in color or detail. The thermal transfer printer’s design and advanced heating system reduce the risk of printing material distortion, making it perfect for transferring intricate designs onto various substrates, including delicate and stretchable materials.
| Model | LQ-MD 3200RTR |
| Drum Diameter | 420mm |
| Temperature | 240℃ |
| Power | 36kW 3-Phase 4-Wire, 380V/50Hz |
| Net Weight | 2300kg |
| Working width | 1200mm-3600mm |
- The printing press has an ergonomic design, creating a worker-friendly environment that significantly reduces labor requirements.
- Operating this heat transfer press is not difficult, with simple adjustments for speed, temperature, and pressure, allowing for convenient operation and consistent results.
- Ensures smooth and reliable transfer of designs without any interruptions or errors, maintaining high-quality output at all times.
- Equipped with a built-in cooling-down timer to enhance the safety and efficiency of the heat transfer operation, allowing the press to cool down appropriately after each use.
- Loading and unloading the rewinds and unwinds is convenient and simple
- Its long belt's stable guidance prevents any movement of the material, ensuring precise transfers without any shifts or misalignments.
- The thermal transfer printing press has a design that allows easy access to the entire rolls of paper and fabric, making maintenance and inspections quick and easier.
- Various optimizing solutions are available to tailor the thermal transfer press to specific needs and improve overall performance.
