Digital Color Label Printer
Continuous label printing machine
Digital Color Label Printer
Continuous label printing machine
This product has been discontinued and removed from our shelves.

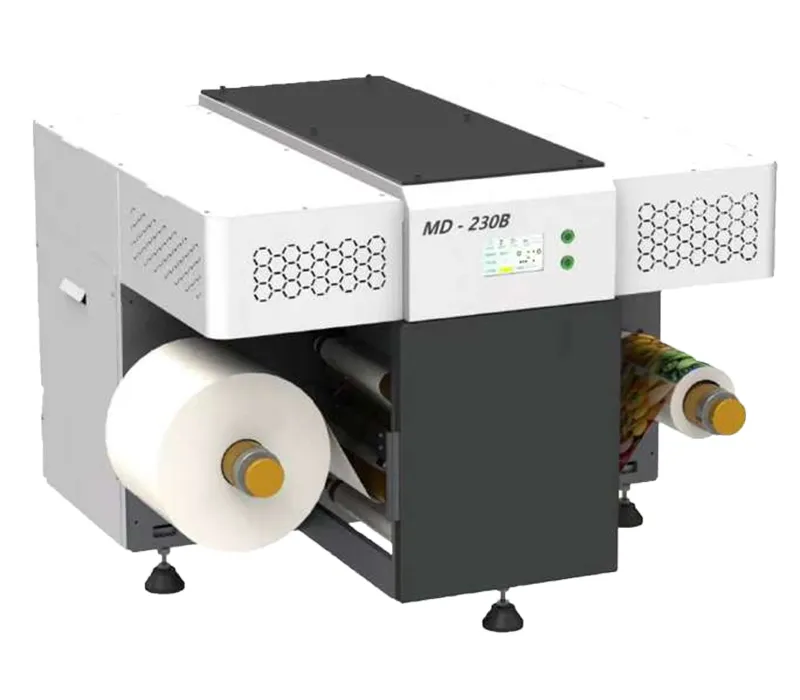

This label printing machine delivers outstanding prints with a maximum resolution of 1200×1200 dpi, capable of rendering fine text and intricate images. It is suitable for a wide range of printing tasks. Unlike traditional laser and UV technologies, this label printer uses water-based dye inks with a specialized heating device, ensuring that it does not emit unpleasant odors, heat, or pollutants during operation. This makes the label printing system ideal for direct printing on food labels, ensuring safety and compliance with health standards.
Equipped with compatibility for most variable data software, this label printing equipment supports fast, continuous printing, allowing for customization of each page. With highly integrated control software, it simplifies operations and provides a cost-effective solution for customized digital printing.
Photographies
Adhesive stickers
Variable data labels
Drug labels
Food labels
Anti-counterfeit labels
| Printer Model | LQ-MD 230 Color Label Printer | |
| Printhead | Printhead Model | LQ-MD 214 |
| Print Resolution | 1200×600/1200×1200 dpi | |
| Max. Print Width | 214mm | |
| Ink Tank Capacity | 900ml×4 color | |
| Ink Type | Dye ink (CMYK) | |
| Paper Requirements | Paper Grammage | 100-180g/m³ |
| Applicable Materials | Writing paper, coated paper, self-adhesive paper, matte paper, PET, PVC, PE, PP, etc. | |
| Max. Paper Width | 230mm | |
| Max. Diameter of Paper Roll | 300mm | |
| Specialty Substrate | Label after die-cutting | |
| Print Speed | High Speed Mode | 18m/min |
| Resolution Mode | 9m/min | |
| Electrical | Power | 220V-50/60Hz |
| Max. Power/Standby Power | 1800W/200W | |
| Interface | 4.3" industrial screen | |
| Appearance | Dimensions (L×W×H) | 950×770×650mm |
| Net Weight | 160kg | |
| Working Environment | Temperature: 15-35℃ Humidity: 50%-70% | |

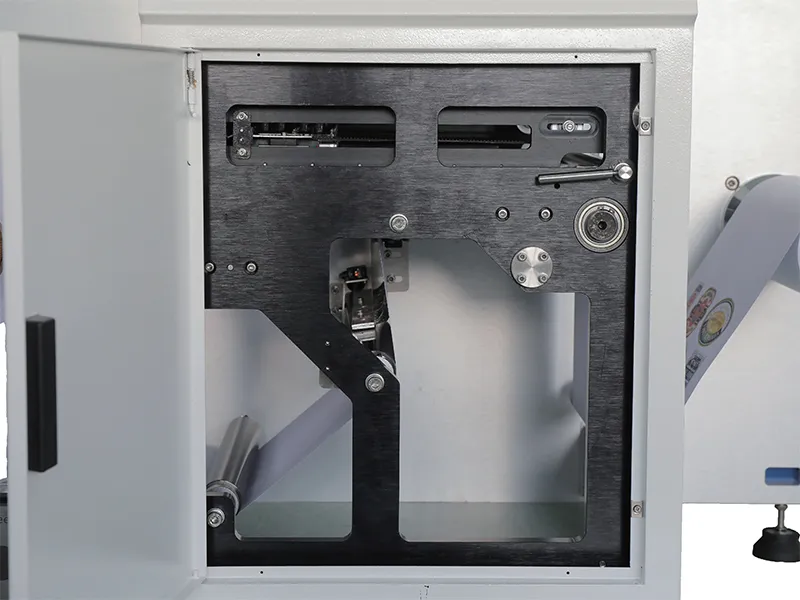

The label printer has a three-axis servo tension control system that adjusts the tension according to the paper weight. This feature ensures optimal print quality for various types of paper, enhancing consistency and precision in every print job.
Featuring a manual expansion shaft with a marked scale, the label printing system allows for quick and easy loading and unloading of rolls. This design enhances the material handling process, significantly reducing downtime and increasing productivity.
A built-in laser sensor with a learning function enables precise print positioning on labels after die-cutting. This advanced sensor also offers a counting feature, which is essential for tracking production and ensuring accuracy in high-volume print runs.
The ink supply system features a positive pressure cleaning function, making loading ink and maintaining the print heads easier. This function guarantees that the printer operates smoothly, with almost need for frequent maintenance and improving overall efficiency of the label printer.
